Tuesday, June 10, 2025

Curious about the weight of the Yokomo BD11 and BD12

After some tunning and learning on the BD11 and 12, just curious about their weights.

The chassis weight is measured with tires (used for over 5 packs of run time), without bodyshell and battery.

There are weight being added on BD11 (around the steering posts) and BD12 (in center of chassis, extension of motor mount)

Surprisingly - BD12 is 30g more heavier than its older brother.

YoloPark AMK Pro series - Transformers The Last Knight - Optimus Prime (non scale) #2 Completed

2nd night, total about 3 hours to complete. No filing no painting ... just snap it together. Fitting is more than good. It is a easy to build and high quality outcome model kit.

There is light inside the head, control with a small piece of magnet for solid light / blinking / off state.


Sunday, June 8, 2025

YoloPark AMK Pro series - Transformers The Last Knight - Optimus Prime (non scale) #1

It is a pre-paint model kit - all parts are pre-painted and well organised in package. Construction manual is not clear - being its size and quality of the print shop I guess. However since the parts are well organised in order, and fitting is perfect, it is at the end easy to put together in a few hours.

So far 2 hours job with a little bit of lubricant in major joints. Height of the kit is about a Bandai MG. Looking forward to complete it soon.





Radio Master MT12

This is an open source radio system base on EdgeTX and the radio also support multi protocols including Spektrum's DSM. My old Spektrum DX4 radio having some issue on the screen which I cannot see the menu clearly. I hope to use MT12 to replace it.
First, it is a cost effective solution (if it is really the solution), which cost less than 1/2 of the cost of a Spektrum radio.
Second, it support not just DSM but a number of other protocols, and since it is open source, I guess the support and evolution of its function will continue to get better

Back to the ground, I have first tried to pair it with Spektrun SR 3500 receiver, spent couple of nights but still cannot figure it out. The SR 3500 still, can pair and work well with the DX4. I then tried the SR 2000 on the ZX5FS kit. It works ! Altho it is still a bit weird that the steering / throttle function need to be further adjusted, but it is the motivation to move on.


Continue the setup of servo sub trim, ESC calibration, steering EPA ... etc, it is NOT the usual Sanwa menu and the way the menu is arranged possibly make more sense to a radio system developer than an average RC player, especially those grow up with Futaba, Sanwa, (KO is always different, already).

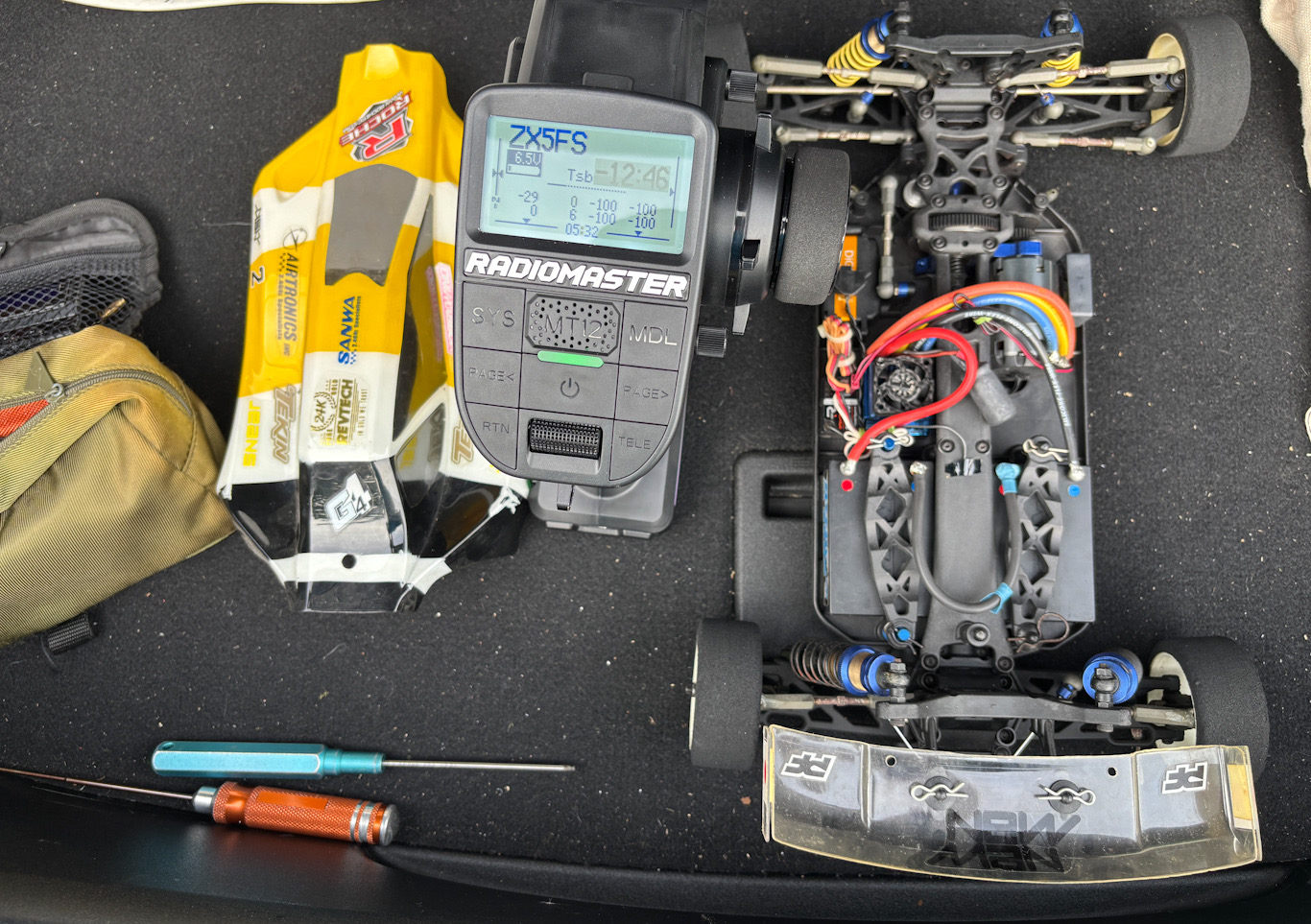

It works well in today road testing with the old Kyosho ZX5FS.

I still have a few more different models of Spektrum to test, perhaps, just a bit hard to make the SR 3500 works with MT12.



Saturday, June 7, 2025

Hasegawa 1/72 Glaug

:)



BD12 on ArrowMax 4D setup system

I restarted my 1/10 TC journey from the old Xray T3 and T4 last couple of years, with outdated ESC and 13.5T left from 10 plus years ago. Even the T4 was like 2014 product I think.
After some warm up time, I started building BD11 with Outlaw 13.5T, and then BD12 with 5.5T
Possibly the right choice as both BD11 and 12 comes with modern TC chassis and suspension, while it is not the most complicated setup available in the market. They are still using traditional c-hub, with a pin system to mount the c-hub to the graphite + metal formation of structure. Good thing is that there is no need to measure the caster as it is kind of FIXED like old days. The downside is less option available to fine tune it. Question is - do I need it ? Well, I don't know yet, I won't really know until I start building and running chassis like Mi9, A800R ...
For now, the ArrowMax 4D setup station or something similar is a must for setting up modern TC chassis.
Good news (again) is that once it is properly setup on the station, you know exactly what are the setup you are running with, and it is not too complicated to operate and mount. I like it over the Hudy setup toolkit because my eyes having challenge to read the toe-in / out information from the Hudy acrylic plate. ArrowMax 4D has toe in / out reading on white marking with black alloy background. This helps.

Now the bad news - maybe it is just for me. In the past, once the T3 or T4 is setup (eg ride height, camber ...) it will stay until we change it explicitly. I tried to put the BD11 and BD12 on the setup station after, say, 3-5 packs of run, and "surprisingly" found out the setup are out. This happens even without any crash !!!! OK - so the bad news is really not that bad - re setup the chassis every few runs to ensure all the readings are what you want. I guess it is about the run-in of the chassis while those plastic parts are sitting in with the metal and graphite parts. The chassis are really a lot more complicated than T3 and T4.

My 3rd modern TC built was X4 2022'. On one hand, it has slightly better build experience than Yokomo, at least I did not spend one night to just build the BD11 / 12 lower arms. It is using ball connection for front and rear hubs instead of traditional c-hub, which means there are more option to tune the chassis. Thanks to Xray which use "fixed" upper a-arm and hence the setup would not be as complicated as Mi9, A800R ...  I cannot imagine how can I learn all these setting efficiently with a direct dump to say Awematrix.

It is good to start the TC class again after years. and I have not run brushless mod motor on TC since the brushed motor time. I would still, try to setup old T4 / BD7 to catch up with laptime with my BD11 and 12.



My study chair ...

Beside building and fixing RC and static model, it is also a leisure to replace part and fix the bigger kit

Clearly it is less complicated than any RC




Kyosho F-Ten GP Proto

I cannot recall when it was first released, it has 3 belts 4WD design with a small OS 10 class engine




Kit was purchased 2nd hand which was built but never run
With an unpainted bodyshell



Sunday, May 25, 2025

Iris One.1

Interesting design from Germany company, made in TW kit.

The chassis is designed with 3 driving belts and unique suspension - there is no traditional shocks and shock towers, it uses something similar to Awesomatix's suspension system, at least visually.

The parts are made nicely, and the packaging inside the box is also interesting, individual parts are "packaged" inside from same packing as the parts are sold as replacement parts.

I got the alloy chassis version this time.




Xray X4 2022 #3

Decided to test one new brand of ESC - Nitride from Elceram. There is an onboard digital display with physical buttons for ESC setup and data review. The ESC is built in a solid metal case, altho a bit heavy. Also noticed that there is no cooling fan.

Equipped with HobbyWing G2 outlaw 4.5T motor

Wiring has been completed and electronics are all done




Tuesday, May 6, 2025

Kyosho Super Ten and Pure Ten

Super Ten FW03 and FW04

Pure Ten Spider





Sunday, May 4, 2025

Xray X4 2022 #2

Completed 4 corners and steering servo

Installed anti roll bars, bumper and body posts

Overall fitting is Xray standard, which is excellent. Only complaint is that the space of setup anti roll bar is a bit narrow.

Pending electronics and shocks


Monday, April 28, 2025

Volks IMS 1/100 K.O.G. #15

Spray and masked and spray again on one side of the shoulder.

Gaia grey surfacer, followed by Modo 5000 black primer, MX06 as the main gold color.

Waited for a week, masked and sprayed Gaia red.

Waited for another few days, applied enamel to the panel line.

Installed the shoulder parts and scabbard.








Weekend vintage RC

Sat with Hotshot, Sun with Optima




Xray X4 2022 #1

Another series of modernized TC I want to build after the experience with Yokomo BD series.
The build quality is Xray standard - parts and screws are well organized, open and use bag by bag. Parts fitting are nice, and with the new type of arms - I can save a night of work compared to those arms from BD family. Power HD has released a special version of its S15 servo - S-15X which is designed especially for X4, there is no need to install any servo mount and as the "ear" has been integrated with the serve case, with 3 screws - servo will fit directly on the bottom chassis.






Yokomo BD12 build in progress #6 (completed)

Final setup and test run !

It is good that BD11 and BD12 can share the same bodyshell perfectly.

The middle one in below pic is BD12, with its older brother BD11 in the bottom.

They really look alike, with the same DNA. obvious differences are the split upper deck and rear shock mount point for BD12.



RC10 4WD #6 (completed)

Last step to complete the kit, soldering and spray the bodyshell.



A simple job this time with Tamiya spray can.




Wednesday, April 2, 2025

RG Z'Gok #5

Apply Gaia 071 and 072 on hands and legs armour



Tuesday, April 1, 2025

Xray X12 2021 chassis build #2

Soldering job done - after so many year of its build.



Yokomo BD12 build in progress #5

Soldering job done on the ESC / motor wiring


Still thinking about the radio - might use the Flysky this time.
Pending shocks to build, and the bodyshell can be shared with BD11.


RC10 4WD #5

Chassis is ready - tick
Tires are glued - tick
ESC and motor / batt wiring done - tick
It is an old Nosram ESC and Viper 10.5 motor


And now, the tough part - body shell !
Cut the basic shape and opening following the suggested mark on the body shell - remember, it is for 2WD version.
Trimming to fit on the 4WD chassis - done, but not perfect, have to cut out more material in front near the shock tower
The rear bodypost has not enough clearance - hence adding one more original tick shim to make it slightly higher. The front bodypost, after shimming to the max - it is still not going to have enough height to reach the bodyshell. I used a TC bodyshell to replace it at the end, it works and it is simple.



Next :
1. basic setup, camber and ride height
2. radio setup and ESC setup
3. body paint
